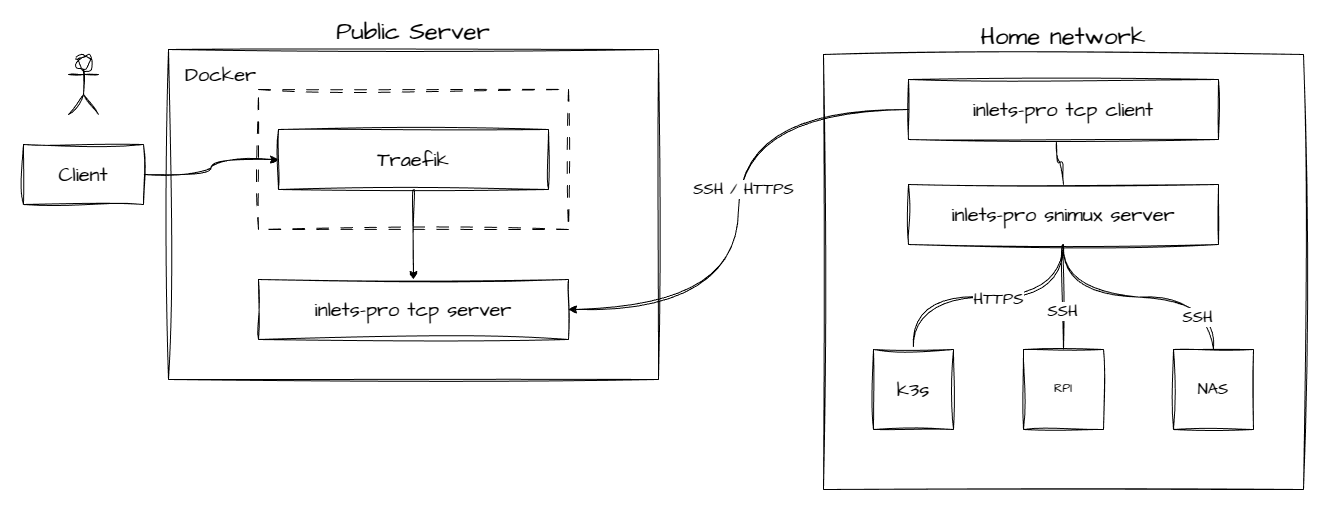

Recently, I created a K3s cluster on three Raspberry Pi 5 devices and started using inlets-pro for tunneling private services to the public. A lot of new things to learn. Finally I ended up with the below architecture.

Architecture

Here’s a short summary of the steps I took to get there.

Simple K3s Cluster

Setting up the RPIs and K3s was a breeze using Alex Ellis’ k3sup and following his blog post Will it cluster? k3s on your Raspberry Pi.

First Helm Chart

As a Kubernetes novice, I read some stuff about K3s and Kubernetes in general and started to play around with it. After a lot of trial and error, I managed to create my first helm chart to deploy Traefiklabs’ whoami server.

Helm chart assets
---
# Chart.yaml
apiVersion: v2
name: whoami
version: 0.1.0
description: A helm chart for Traefiklabs whoami server

---
# templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: whoami
  namespace: whoami
spec:
  replicas: 3
  selector:
    matchLabels:
      app: whoami
  template:
    metadata:
      labels:
        app: whoami
    spec:
      containers:
        - name: whoami
          image: docker.io/traefik/whoami:v1.11
          ports:
            - containerPort: 80

---
# templates/service.yaml
apiVersion: v1
kind: Service
metadata:
  name: whoami
  namespace: whoami
  annotations:
    traefik.ingress.kubernetes.io/router.path: /whoami
spec:
  selector:
    app: whoami
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
  type: ClusterIP

---
# templates/ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: whoami
  namespace: whoami
  annotations:
    traefik.ingress.kubernetes.io/router.entrypoints: websecure
spec:
  ingressClassName: traefik
  rules:
    - http:
        paths:
          - path: /whoami
            pathType: Prefix
            backend:
              service:
                name: whoami
                port:
                  number: 80

I deployed the whoami server by creating a new namespace and installing the chart.

kubectl create namespace whoami
helm install whoami . --namespace whoami

And finally, I checked the deployment.

curl http://10.19.80.200/whoami
Hostname: whoami-75f67fdff4-9v895
IP: 127.0.0.1
IP: ::1
IP: 10.42.1.6
IP: fe80::b8fa:58ff:fe91:c289
RemoteAddr: 10.42.0.8:36852
GET /whoami HTTP/1.1
Host: 10.19.80.200
User-Agent: curl/7.88.1
Accept: */*
Accept-Encoding: gzip
X-Forwarded-For: 10.42.0.1
X-Forwarded-Host: 10.19.80.200
X-Forwarded-Port: 80
X-Forwarded-Proto: http
X-Forwarded-Server: traefik-67bfb46dcb-lzx5p
X-Real-Ip: 10.42.0.1

Success!

Inlets tunnel

The missing piece of the puzzle was to expose the whoami server to the outside. I had already set up a tunnel to SSH into some private hosts. For that I deployed an inlets-pro TCP server on my dedicated Hetzner root server, the corresponding inlets-pro TCP client and an inlets-pro snimux server on one of the RPIs. A good read about the inlets-pro snimux server is yet another blog post by Alex Ellis, The only tunnel you’ll need for your homelab.

Inlets-pro tunnel assets
# /etc/systemd/system/inlets-pro-tcp-server.service
[Unit]
Description=inlets Pro TCP Server
After=network.target

[Service]
Type=simple
Restart=always
RestartSec=5
StartLimitInterval=0
ExecStart=/usr/local/bin/inlets-pro tcp server \
    --auto-tls --auto-tls-san=78.47.60.169 \
    --control-addr=0.0.0.0 --control-port=8123 \
    --token-file /etc/inlets-pro/token \
    --allow-ips=::1 --allow-ips=0.0.0.0/0 \
    --proxy-protocol v2

[Install]
WantedBy=multi-user.target

# /etc/systemd/system/inlets-pro-tcp-client.service
[Unit]
Description=inlets TCP Client
After=network.target

[Service]
Type=simple
Restart=always
RestartSec=5
StartLimitInterval=0
ExecStart=/usr/local/bin/inlets-pro tcp client \
    --url=wss://78.47.60.169:8123/connect \
    --upstream=127.0.0.1 --ports=8443 --auto-tls \
    --license-file=/etc/inlets-pro/license --token-file=/etc/inlets-pro/token

[Install]
WantedBy=multi-user.target

# /etc/systemd/system/inlets-pro-snimux.service
[Unit]
Description=inlets SNImux Server
After=network.target
Before=inlets-pro-tcp-client.service

[Service]
Type=simple
Restart=always
RestartSec=5
StartLimitInterval=0
ExecStart=/usr/local/bin/inlets-pro snimux server \
    /etc/inlets-pro/mux.yaml --proxy-protocol v2

[Install]
WantedBy=multi-user.target

The key part is the multiplexing configuration file setting up the upstreams.

# /etc/inlets-pro/mux.yaml
upstreams:
- name: core.r.coresec.zone
  upstream: 10.19.80.5:22
- name: rpi-zero.r.coresec.zone
  upstream: 10.19.80.222:22
- name: rpi1.r.coresec.zone
  upstream: 10.19.80.200:22
- name: rpi2.r.coresec.zone
  upstream: 10.19.80.201:22
- name: rpi3.r.coresec.zone
  upstream: 10.19.80.202:22

Additionally, I exposed the K3s management port 6443 to the outside world.

# /etc/inlets-pro/mux.yaml
- name: k3s.r.coresec.zone
  upstream: 172.19.80.200:6443
  passthrough: true

Exposing the whoami server

Still lacking a lot of knowledge about Kubernetes, I decided to terminate the TLS connection on the existing Traefik instance running in a Docker environment on the Hetzner server and forward the traffic to the tunnel.

I created a new CNAME record *.r.coresec.zone pointing to the Hetzner server, and added a new router, service and middleware to the Traefik configuration.

---
http:
  routers:
    whoami.r.coresec.zone:
      rule: Host(`whoami.r.coresec.zone`)
      middlewares: whoami.r.coresec.zone
      service: whoami.r.coresec.zone
      tls:
        certresolver: cloudflare
  services:
    whoami.r.coresec.zone:
      loadbalancer:
        servers:
          - url: https://node1.k3s.r.coresec.zone:8443
          - url: https://node2.k3s.r.coresec.zone:8443
          - url: https://node3.k3s.r.coresec.zone:8443
  middlewares:
    whoami.r.coresec.zone:
      addprefix:
        prefix: "/whoami"

The key part are the three servers in the loadbalancer section. They are pointing to the upstream host names, registered in the inlets-pro snimux server configuration, passing the traffic to the K3s cluster nodes.

# /etc/inlets-pro/mux.yaml
- name: node1.k3s.r.coresec.zone
  upstream: 172.19.80.200:443
  passthrough: true
  allow:
    - 172.18.0.0/16
- name: node2.k3s.r.coresec.zone
  upstream: 172.19.80.201:443
  passthrough: true
  allow:
    - 172.18.0.0/16
- name: node3.k3s.r.coresec.zone
  upstream: 172.19.80.202:443
  passthrough: true
  allow:
    - 172.18.0.0/16

Further I limited the access to the K3s cluster nodes to the Docker network.

That settled the matter. I can now access the whoami server from the outside world.

curl --location https://whoami.r.coresec.zone
Hostname: whoami-75f67fdff4-9v895
IP: 127.0.0.1
IP: ::1
IP: 10.42.1.6
IP: fe80::b8fa:58ff:fe91:c289
RemoteAddr: 10.42.0.8:55346
GET /whoami/ HTTP/1.1
Host: whoami.r.coresec.zone
User-Agent: curl/7.88.1
Accept: */*
Accept-Encoding: gzip
X-Forwarded-For: 10.42.0.14
X-Forwarded-Host: whoami.r.coresec.zone
X-Forwarded-Port: 443
X-Forwarded-Proto: https
X-Forwarded-Server: traefik-67bfb46dcb-lzx5p
X-Real-Ip: 10.42.0.14

Conclusion

I am still learning a lot about Kubernetes, K3s, Traefik and inlets-pro. The above is just a first step to get a better understanding of the whole ecosystem. I am sure there are better ways to do this, but for now it works for me. I will keep you updated about my progress.
